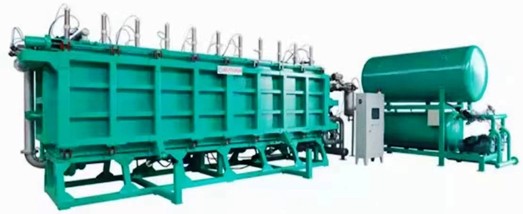

    Block Molding Machine PSB-400-DZ

    - The machine frame is welded steel Profile and plate which ensure high strength for additional safety of the machine.
    - The frames are heat treatment after welding to release the welding tension.
    - After heat treatment all the mould frames are machining and coated with anti-rust paint and top primer.


    Technical Data

    -             Complete with Block Conveying Line with Weighing Scale, Control Panel

    -             Complete with Block Overhead Hopper and Material Hoses

    -             Controlled by Mitsubishi PLC and Winview Touch Screen

    -             With two extra hydraulic side locks for better locking

    -             Use German Burkert Solenoid Valve

    -             Use German Electrical Pressure Gauge

    -             Mould size:                      4080 ×1240 ×1030mm

    -             Block size:                4000 ×1200 x 1000mm

    -             Density Range:         6-30KG/M³

    -             Capacity:                          For density 7 g/l, around 3 Minutes Cycle

    -             Steam entry:                                  DN 100

    -             Steam consumption:                      12-17 KG /M³

    -             Steam working pressure :        0.7 Mpa

    -             Compressed air consumption :      2 m³ per cycle

    -             Compressed air pressure :       0.6 - 0.8 Mpa

    -             Power consumption:                      32.25 kW

    -             Machine weight:                            approx. 12,000 kg

    -             Overall dimension:                        9600 * 4500 * 3100mm
