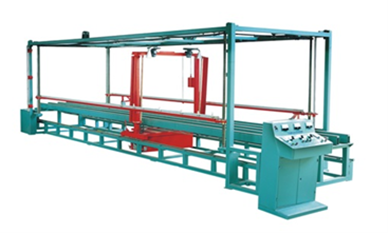

    C Type Cutting Machine PSC-400A

    - The main frame of the machine is welded by steel profile with strong structure and ensure high strength
    - The machine can make both thickness and length cutting on the same machine. The width cutting will be done manual operation.
    - The machine adopts converter speed leads stable moving, adjustment 0-2 m/min stepless. For low speed cutting and fast cutter draw back.



    Technical Data

    -            Machine overall dimension:  6800 * 1950 * 1300 mm

    -            Max Block size:  4000 * 1300 *1300 mm

    -            Minimum thickness to be cut is 10 mm.

    -            Cutting speed:  0～4 m/min (The machine adopts variable frequency speed regulation,

          with smooth movement and a wide speed range, achieving arbitrary adjustment of 0-4 meters/minute,

          suitable for slow cutting and fast tool retraction requirements)

    -            Power: 11.3kW

    -            Machine weight: 1600Kg
